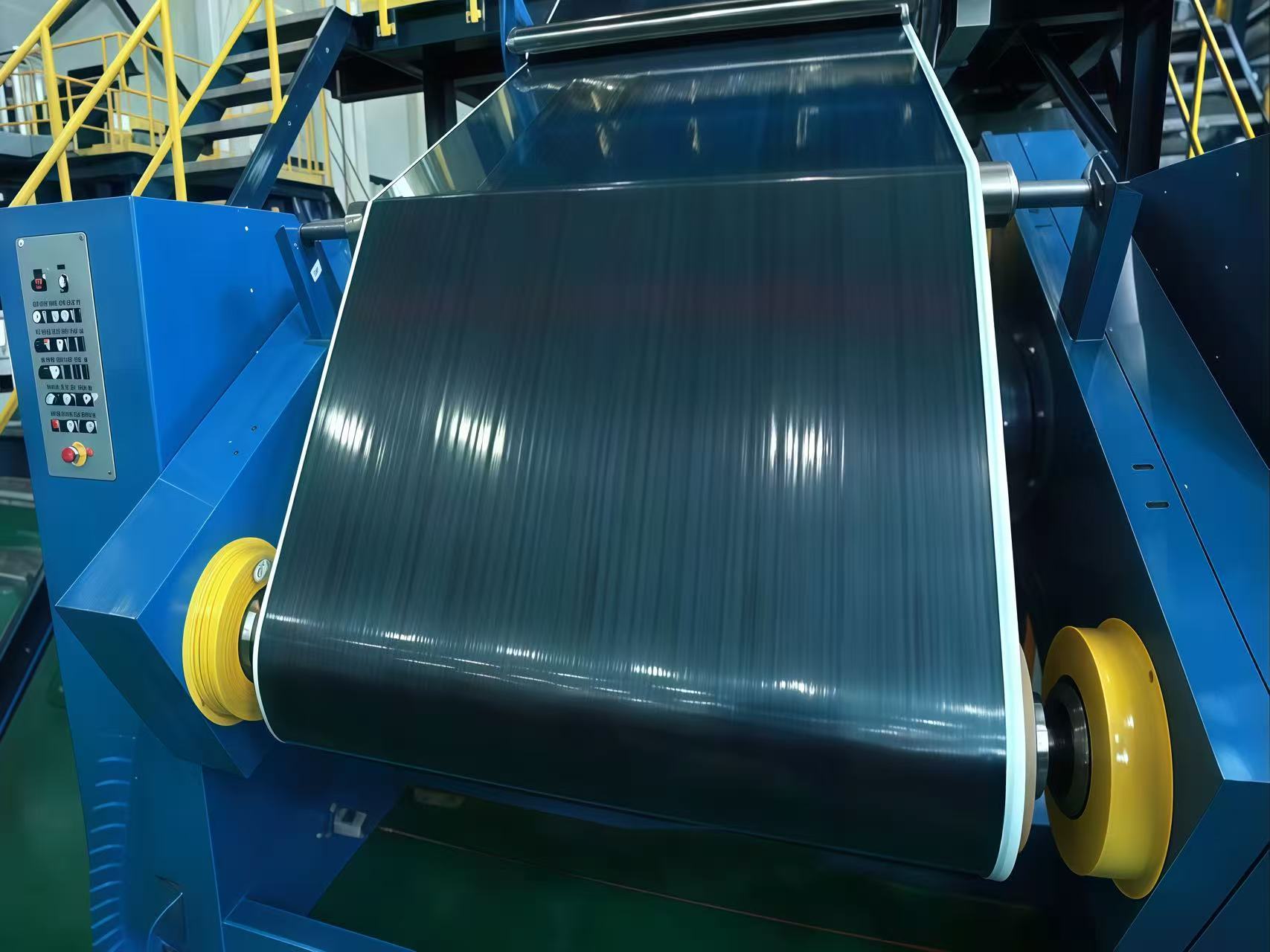

The thin-ply prepreg exhibits excellent wettability and layup performance, meeting the lamination requirements for complex structures and intricate shapes. Composite parts manufactured with thin-ply prepreg deliver superior compressive strength and tension-tension fatigue resistance compared to those made with thick plies. Additionally, it provides greater design freedom for final composite parts.
Product Specification
|
T700 GRADE CARBON FIBER |
||||
|
Description |
Fiber Areal Weight(g/m²) |
Resin Content |
Prepreg Area Weight(g/m²) |
Reference |
|
OSB UD 15 |
15* |
42 |
26 |
0.02 |
|
OSB UD 20 |
20* |
42 |
34 |
0.02 |
|
OSB UD 25 |
25* |
40 |
42 |
0.03 |
|
OSB UD 30 |
30* |
40 |
50 |
0.03 |
|
OSB UD 40 |
40* |
37 |
63 |
0.04 |
|
OSB UD 50 |
50* |
37 |
79 |
0.05 |
|
OSB UD 55 |
55 |
37 |
87 |
0.06 |
|
OSB UD 75 |
75 |
37 |
119 |
0.08 |
|
OSB UD 100 |
100 |
33 |
149 |
0.10 |
|
OSB UD 125 |
125 |
33 |
187 |
0.12 |
|
OSB UD 150 |
150 |
33 |
224 |
0.14 |
|
OSB UD 175 |
175 |
33 |
261 |
0.17 |
|
OSB UD 200 |
200 |
33 |
299 |
0.19 |
|
T800 GRADE CARBON FIBER |
||||
|
Description |
Fiber Areal Weight(g/m²) |
Resin Content |
Prepreg Area Weight(g/m²) |
Reference |
|
OSB UD 25 |
25* |
40 |
42 |
0.03 |
|
OSB UD 30 |
30* |
40 |
50 |
0.03 |
|
OSB UD 40 |
40* |
37 |
64 |
0.04 |
|
OSB UD 50 |
50* |
37 |
79 |
0.05 |
|
OSB UD 55 |
55 |
37 |
87 |
0.06 |
|
OSB UD 75 |
75 |
37 |
119 |
0.08 |
|
OSB UD 100 |
100 |
24 |
132 |
0.08 |
|
OSB UD 125 |
125 |
24 |
164 |
0.10 |
|
OSB UD 150 |
150 |
33 |
225 |
0.14 |
|
OSB UD 175 |
175 |
33 |
261 |
0.17 |
|
OSB UD 200 |
200 |
33 |
299 |
0.19 |
|
M40 GRADE CARBON FIBER |
||||
|
Description |
Fiber Areal Weight(g/m²) |
Resin Content |
Prepreg Area Weight(g/m²) |
Reference |
|
OSB UD 20 |
20* |
40 |
33 |
0.02 |
|
OSB UD 25 |
25* |
40 |
42 |
0.03 |
|
OSB UD 30 |
30* |
40 |
50 |
0.03 |
|
OSB UD 40 |
40* |
37 |
64 |
0.04 |
|
OSB UD 50 |
50* |
37 |
79 |
0.05 |
|
PITCH-BASED CARBON FIBER |
||||
|
Description |
Fiber Areal Weight(g/m²) |
Resin Content |
Prepreg Area Weight(g/m²) |
Reference |
|
OSB UD 80 |
80 |
40 |
133 |
0.08 |
|
OSB UD 85 |
85 |
40 |
142 |
0.09 |
|
OSB UD 90 |
90 |
40 |
150 |
0.09 |
Note:
1、The fiber areal weight in the table is a typical value;the other parameters can be customized according to customer requirements.
2、The width of all fabric listed in the table is 1000mm.
3、Unidirectional prepregs marked with(*)for fiber areal weight are the company's thin-ply featured products.
